Case Study: 100TPD Gold Processing Line with Ball Mill in Africa

If you are planning to establish a 100-ton-per-day (100 TPD) gold beneficiation production line in Africa, you are likely facing a common dilemma: Which type of ball mill is best suited for processing African gold ores? Can the equipment effectively handle the crushing and grinding of hard quartz ores? And how long will it take to achieve a return on investment (ROI)?
We have assisted dozens of mine owners across Africa—including those in Tanzania, Ghana, Guinea, and many other regions—in successfully setting up 100 TPD gold beneficiation lines. In our experience, the most common pitfalls involve selecting the wrong ball mill model or encountering mismatches within the equipment configuration. For this very reason, we are presenting an in-depth analysis today of a real-world “CHUNLEI” case study: a 100 TPD gold beneficiation line located in East Africa that utilizes our core ball mill equipment. This production line is currently operating smoothly; it has not only significantly boosted gold recovery rates but also achieved its projected ROI targets within a mere 24 months.

In this article, I will outline the specific pain points the client faced, the tailored solution we designed for them, the exact “CHUNLEI” equipment models selected (complete with full technical specifications), and the tangible results the client has achieved to date.

In this article, we will introduce:

The Client’s Dilemma: A 100-Ton-Per-Day Gold Mine Mired in Inefficiency

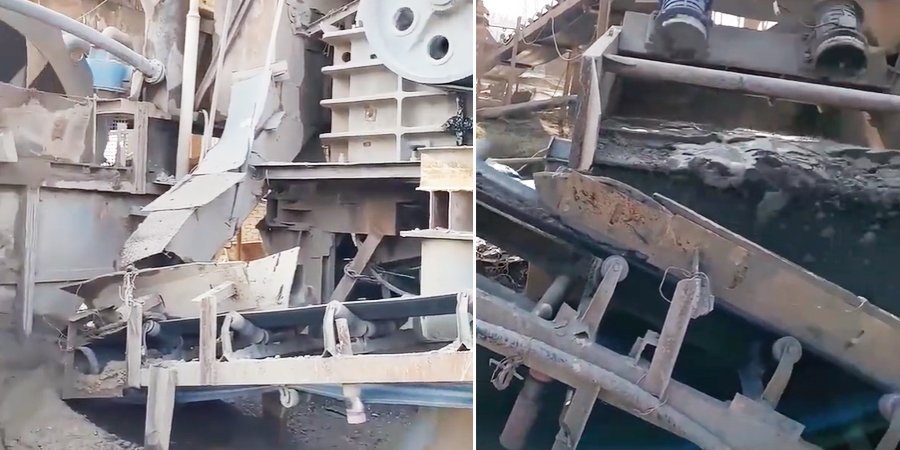

Our client is a medium-sized mining company based in East Africa, operating a gold mine with a daily processing capacity of 100 tons. Prior to partnering with CHUNLEI, they were plagued by a generic mineral processing line—a system that was not only inefficient but also resulted in a massive waste of both time and capital:

• Their existing ball mill was incapable of effectively processing hard quartz gold ore (with a Mohs hardness rating as high as 7–8), leading to frequent equipment breakdowns and extremely inconsistent grinding fineness.
• Gold recovery rates were woefully low—standing at a mere 82%—meaning that a significant amount of precious gold resources was being needlessly discarded within the tailings slurry.
• Energy costs and electricity bills remained prohibitively high; furthermore, losses incurred due to downtime caused by equipment maintenance amounted to approximately $2,000 per day.
• They were in urgent need of a reliable gold mineral processing line with a daily capacity of 100 tons. This line had to be perfectly tailored to their specific ore type, significantly boost gold recovery rates, and remain strictly within their allocated budget—while also ensuring highly efficient installation (as every day of delay translated directly into lost profits).

In fact, the vast majority of our African mining clients face these very same challenges: hard-to-grind ores, soaring energy costs, and tight project deadlines. And this is precisely where CHUNLEI’s customized solutions truly shine.

Our Solution: A Customized 100-Ton-per-Day Gold Beneficiation Production Line Equipped with CHUNLEI Ball Mills

First, we conducted an analysis of the client’s ore samples. The test results indicated that the samples consisted of high-hardness quartz-gold ore containing a small amount of clay; consequently, a closed-circuit grinding system was deemed essential to ensure uniform and consistent grinding fineness—a critical factor for achieving high gold recovery rates. Based on these findings, we designed a complete 100-ton-per-day gold beneficiation production line, selecting our JM Series ball mills as the core equipment—as this series is specifically tailored to meet the operational demands of gold mining environments in the African region.

Below is the specific equipment configuration list we have provided (accompanied by detailed technical parameters for your reference and cross-comparison against the actual conditions of your own mine):

1. Core Equipment: CHUNLEI JM-1836 Grate-Type Ball Mill (Suitable for gold grinding operations with a capacity of 100 tons per day)

The ball mill serves as the “heart” of any gold beneficiation production line; for beneficiation operations with a daily processing capacity of 100 tons, our JM-1836 model represents the ideal choice. This unit is engineered specifically to process the high-hardness ores prevalent in the African region, effectively minimizing energy consumption and operating costs while ensuring that grinding fineness remains consistently uniform and stable. Below are the complete technical specifications (customized specifically for this East Africa project):

• Cylinder Dimensions: Φ1800 × 3600 mm (Ideally suited for projects with a processing capacity of 100 tons per day).
• Processing Capacity: 20–35 tons/hour (Based on an 8-hour workday, this precisely meets the daily production requirement of 100 tons).
• Grinding Fineness: 200 mesh (80% passing rate)—this is critical for the subsequent gold leaching process (which we will discuss in greater detail later!).
• Motor Power: 110 kW (Utilizes a variable-frequency motor, reducing energy consumption by 25% compared to standard ball mills).
• Steel Ball Charge: 12 tons (Uses high-chrome steel balls, offering exceptional wear resistance—with a service life three times that of standard steel balls).
• Liner Material: Manganese steel (Easily handles hard quartz ores with minimal wear, thereby reducing maintenance requirements).
• Overall Dimensions: 8500 × 3100 × 2100 mm (Compact structure, suitable for mining sites with limited space, and facilitates easy installation in remote regions of Africa).
• Total Machine Weight: 17.6 tons (Including the weight of the liners; facilitates convenient containerized shipping to various ports across Africa).

Why choose this model? It combines a compact structure—sufficiently adaptable to the site conditions of remote African mining areas—with robust durability, enabling it to effortlessly process hard ores. Furthermore, its lattice-type discharge design effectively prevents “over-grinding” (thereby avoiding energy waste) while ensuring the rapid and efficient discharge of the mineral slurry—making it the perfect choice for processing the specific type of ore owned by our client.

2. Auxiliary Equipment (A Complete 100-ton/day Production Line)

A ball mill alone is far from sufficient—we have equipped it with customized auxiliary machinery to construct a seamless 100-ton/day gold beneficiation line, tailored precisely to the client’s specific requirements:

• CHUNLEI PE-600×900 Jaw Crusher (Crushes raw ore to ≤25mm, efficiently feeding the ball mill)
• CHUNLEI FG-1200 Spiral Classifier (Forms a closed-circuit grinding system with the ball mill, returning coarse ore to the mill for further grinding)
• CHUNLEI CIL Leaching Tanks (Works in conjunction with the ball mill to facilitate gold dissolution, significantly boosting recovery rates)
• CHUNLEI Filter Press (Dewatering of tailings; complies with environmental standards in the African region—achieving a water recovery rate of over 85%)

All equipment has been meticulously designed to work in perfect synergy—eliminating issues related to mismatched components and completely eradicating downtime caused by compatibility failures. We have even calibrated the ball mill’s rotational speed to 70% of its critical speed—the optimal range for grinding hard gold ores and ensuring the complete liberation of gold particles.

Results Showcase: 92% Gold Recovery Rate, Reduced Costs, and Rapid Return on Investment

We completed the installation of an entire 100-ton-per-day (100 TPD) production line—including operational training for the client’s team—in just 30 days. Notably, the operators required no prior experience. The following results were achieved six months after the facility commenced operations:

• Gold Recovery Rate: Soared from 82% to 92%—representing an additional 10% recovery of gold, which, based on current market prices, translates to an increase of approximately $15,000 in monthly profits.
• Energy Costs: Reduced by 25%, thanks to the energy-efficient motors featured in the JM-1836 equipment—resulting in monthly electricity savings of approximately $800.
• Downtime: Drastically cut from 5 days per month to less than 1 day—equipment maintenance requirements were minimized through the use of wear-resistant liners and high-quality components.
• Return on Investment (ROI): The client recouped their equipment investment in just 24 months—a timeframe significantly shorter than the 36-month industry average for gold mining projects in Africa.
• Environmental Compliance: The implementation of a closed-circuit water recycling system and dry tailings discharge process ensures full compliance with local African environmental regulations—thereby eliminating the risk of fines and guaranteeing the long-term, stable operation of the project.

Why is this solution the right fit for your 100-ton-per-day gold mining project in Africa?

This case study is by no means an isolated example; rather, it serves as a universal blueprint applicable to any gold mine in Africa operating at a scale of 100 tons per day (100 TPD). Here are the unique advantages offered by the CHUNLEI solution:

1. Tailored for African Ores: We offer complimentary ore testing services and customize ball mill parameters specifically to your ore type—whether it be hard quartz, oxidized ore, or clay-rich deposits—drawing upon our extensive experience in processing all such varieties. Unlike generic equipment found on the market, our JM series is engineered specifically to withstand the rigorous mining environments of Africa.
2. Compact Design, Easy Installation: Our 100 TPD production line is designed with remote African mining sites in mind; it facilitates easy containerized shipping, allows for rapid installation (taking as little as 30 days), and features simple, intuitive operation (backed by our complimentary operational training for your team).
3. Energy-Efficient, Low Maintenance: The JM-1836 model is equipped with variable-frequency motors and wear-resistant components, effectively reducing operating costs and minimizing downtime—a critical advantage for African mining regions where spare parts and reliable power supplies may be scarce.
4. Deeply Rooted in Africa, Proven Results: We have successfully completed dozens of gold beneficiation projects—at scales of 100 TPD and above—across the African continent, achieving a customer satisfaction rate of 98%. We possess an intimate understanding of local regulations, logistics networks, and the unique challenges inherent to the region, ensuring you can proceed with complete peace of mind.

Conclusion

If you are planning to establish a gold processing line in Africa with a daily capacity of 100 tons (100 TPD), take a lesson from one of our clients: never settle for mediocre, generic equipment. With our extensive industry experience, highly optimized ball mill models, and comprehensive localized support, CHUNLEI is ready to help ensure the resounding success of your project.

We offer the following services:

• Free Ore Sample Analysis (We will professionally analyze your ore and recommend the optimal operating parameters for your ball mill).
• Customized Design for a 100-Ton/Day Gold Processing Line (The solution will be tailored specifically to your mine’s scale, ore type, and budget).
• Rapid Installation and Commissioning, Plus Free Operational Training for Your Team.
• 24/7 Global After-Sales Support.
• Free Price Quote and ROI Calculation (We will provide a precise estimate of your payback period).

Are you ready to significantly boost your gold recovery rate and achieve a rapid return on investment? Send us your ore samples today and let us know the location of your mine in Africa; we will provide you with a complimentary, customized planning proposal for a 100-ton/day gold processing line. There are absolutely no strings attached—we are simply dedicated to providing tangible solutions for our mining industry colleagues across Africa.
