Wet Pan Mill

What is Wet Pan Mill?

Wet pan mill, also known as gold ore grinding mill,Wet discs mill, consists of rollers and discs as the main working parts. It is named after the diameter of the grinding rolls and is mainly used for grinding rock gold ores. Wet pan mill is a multi-purpose grinding equipment, not only used for grinding ore, but also used for gold mercurial Qi. Gold mill is mainly used for grinding gold, silver, lead, zinc, iron, molybdenum, copper, antimony and other minerals.

If you are a beginner and do not know about Wet Pan Mill, tell us your raw material characteristics, finished product requirements, site conditions, production budget, hourly production, and other requirements, we have professional engineers to equip you with a suitable model at a reasonable price. Next, let’s see the types of Wet Pan Mill we can supply.

What Is Wet Pan Mill Used For?

Wet pan mill can be used to grind various metal minerals, non-metallic minerals, rare metals and other materials. For example, gold, silver, lead, zinc, molybdenum, iron, copper, antimony, tungsten, tin, etc. All ball mills can be used for ore dressing, and water mills can also be used. It is widely used in the production industries of cement, silicate products, new building materials, refractory materials, chemical fertilizer, ferrous non-metallic ore beneficiation and industrial waste residue.

For example: A company is a medium-sized gold mining enterprise located in Africa, with rich gold resources, but has been limited by the traditional gold ore treatment process, insufficient processing capacity, low efficiency and limited profit margin. We have customized a new type of high efficiency and energy saving gold mill for our customer: this equipment adopts advanced crushing and grinding technology, which significantly improves the production efficiency and the daily processing capacity meets the requirements, and meets the customer’s production needs.

Moreover, we have set up a professional after-sales service team to provide customers with a full range of pre-sales and after-sales services to ensure the stable operation of the equipment and minimize downtime.

Customer Comments：

“The gold mill equipment and solutions provided by chunlei machinery are very professional, which help us solve the production problems, improve the production efficiency, reduce the operating costs, and create great economic benefits for us. We are very satisfied and look forward to long-term cooperation with your company!”

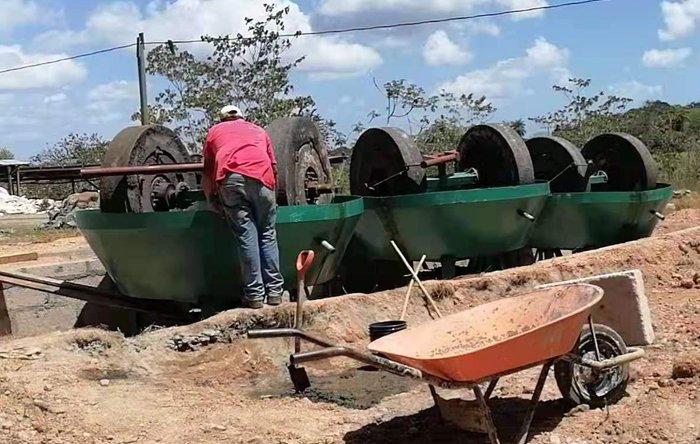

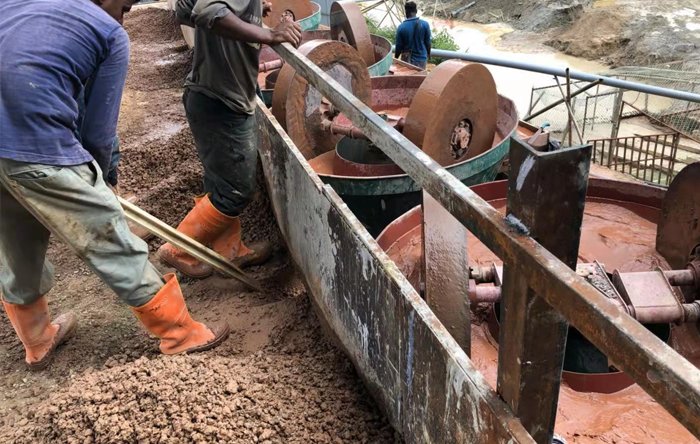

Wet Pan Mill ordered by Customer

Chunlei Machinery has been engaged in mining machinery manufacturing for more than 30 years, with a wealth of experience in building websites and customer cases, served customers all over the world!

Technical Parameters of Wet Pan Mill

model	Roller diameter (mm)	Roller thickness (mm)	Diameter of milling disc (mm)	Milling plate thickness (mm)	Width of milling tray groove (mm)	rotating speed of grinding discr/min	powerKW	throughputt/h	weightT
JM-1600	1600±20	400±20	2100±20	180±30	500	20-22	30	9-10	16
JM-1500	1500±20	300±20350±20400±20	2000±202100±20	150±30180±30	450	20-22	22	7-8	12
JM-1400	1400±20	250±20	2000±20	150±20	360	16-18	15	5-6	9.5
JM-1300	1300±20	250±20	2000±20	150±20	360	16-18	11	3-4	8
JM-1200I	1200±20	220±20	1800±20	100±20	270	13-18	7.5	1-2	6
JM-1200II	1200±20	200±20	1800±20	100±20	250	13-18	7.5	0.8-1	5
JM-1100	1100±20	200±20	1800±20	80±20	250	13-18	5.5	0.5-0.8	4.5
JM-1000	1000±20	200±20	1800±30	80±20	250	13-18	5.5	0.3-0.5	4
JM-900	900±20	160±20	1700±30	50±20	200	13-18	3	0.2-0.3	3
JM-850	850±20	140±20	1700±30	50±20	180	13-18	3	0.1-0.2	2.5

Note: The output will vary depending on different materials, feed particle size and other factors.

Working Principle of Wet Pan Mill

Wet pan mill is mainly composed of power unit, frame, trough, grinding wheel, grinding disc and other parts, adopting wheel-driven grinding working mode: firstly, the motor transmits the power to the reducer, which is driven by the reducer, and the torque is transmitted to the upper horizontal axis through the big vertical shaft, and then to the grinding wheel through the tie rods installed at both ends of the horizontal axis, so as to make the grinding wheel generate the driving force and rotate anticlockwise along the horizontal direction of the horizontal axis; during the operation, the grinding wheel can rotate around the vertical axis of the wet mill and rotate around the center axis of the grinding wheel, while the grinding disc is fixed. The added ore material is subjected to the squeezing force generated in the mill by the weight of the wheel itself. The grinding wheel and disc are repeatedly squeezed, kneaded and ground by the tremendous friction generated during rotation. Afterwards, it is completely crushed.

The mill has the function of mixing and stirring the slurry at the same time in the process of crushing and stirring the minerals, so that the materials and water are fully and evenly mixed to stabilize the slurry concentration and other grinding indexes; the fine particles of monomer minerals after grinding and crushing are brought to the upper level of the liquid surface of the mixed slurry, and discharged through the overflow discharge port located in the pool, and then enter the next process for processing; the coarse minerals are sunk to the bottom of the mill and continue to be ground and crushed until the fineness reaches the standard; the discharge port located in the pool discharges the fineness to the standard. The fineness reaches the standard; the sieve located at the discharge port of the pool (the aperture of the sieve mesh should be reasonably set according to the type of minerals and separation requirements) can strictly control the grading particle size, to avoid the phenomenon of minerals being over-crushed or uneven in particle size, and to create good conditions for the subsequent operation.

Advantageous features of Wet Pan Mill

• Mineral Processing Mill (Wet Grinding) equipment is simple in structure, easy to operate, not affected by the site, and can be produced by connecting the power supply;
• Roller and base grinding are made of pure white iron and special wear-resistant materials, durable;
• Mineral processing mill (wet grinding) equipment equipment investment is small, high yield, production flexibility, can choose a single desktop beneficiation, but also can be used for multi-group beneficiation;
• Widely used all kinds of gold mills, can use ball mill to grind materials;
• Easy installation and maintenance, low investment, high output and low production cost. It is an ideal equipment for mineral processing of small and medium-sized enterprises in Kuangqu. 6.

What can ChunLei do for you-about service？

Wet Pan Mill price

As for the price, we can’t show you the exact price because we deal with customers from all over the world and there are many factors affecting the price. If you want to know the price of Wet Pan Mill, you can leave a message to us on this page, we have professional sales staff and engineers to explain to you.

As one of the old brand mining machinery manufacturers in Henan, Chunlei Machinery strictly controls every Wet Pan Mill for sale with more reliable quality. Chunlei has its own R&D team and production site, and sells directly, enjoying factory super low price. What are you waiting for? Contact us immediately!
