A ball mill is a key grinding equipment that crushes and grinds materials such as ores and building materials by rotating and impacting grinding media such as steel balls inside the cylinder.

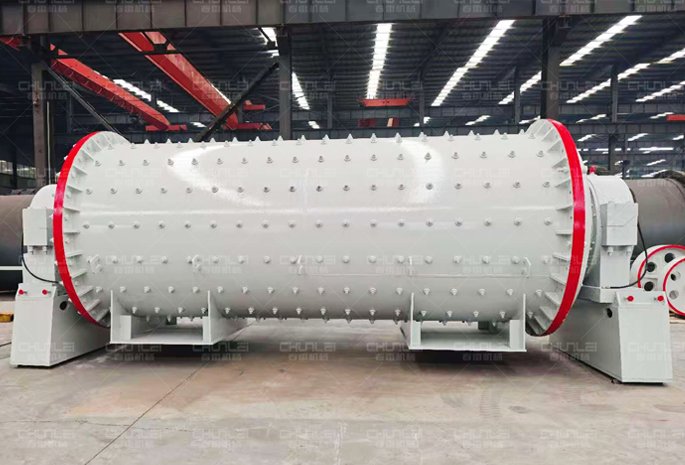

A ball mill is a large rotating steel cylinder used to grind crushed rocks into very fine powder. You need this fine powder to separate valuable metals from useless dirt. It is the core machine in modern mineral processing equipment. We design these massive machines to work 24 hours a day without stopping.
This machine looks simple from the outside. You feed small crushed rocks into one end. A huge motor turns the steel cylinder. The far end of the machine spits out fine dust or a wet mud slurry. We build our machines heavy and thick in our 8000-square-meter factory. We know the thick steel stops the machine from vibrating and breaking during heavy workloads. You need a machine that can survive aggressive mining environments. You cannot afford sudden machine breakdowns. A broken machine stops your whole plant and costs you money. We ensure our equipment runs smoothly every single day.

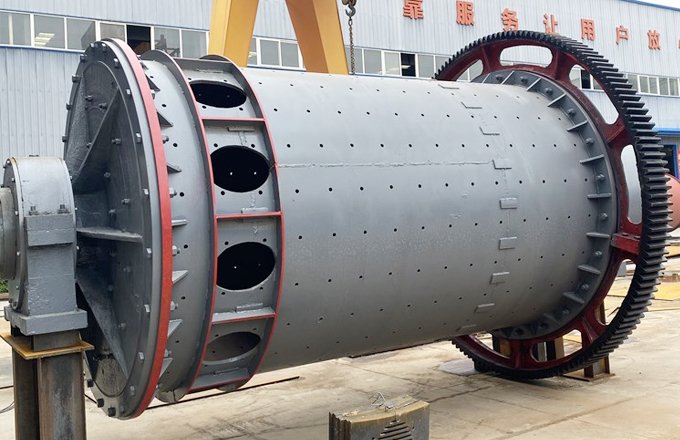

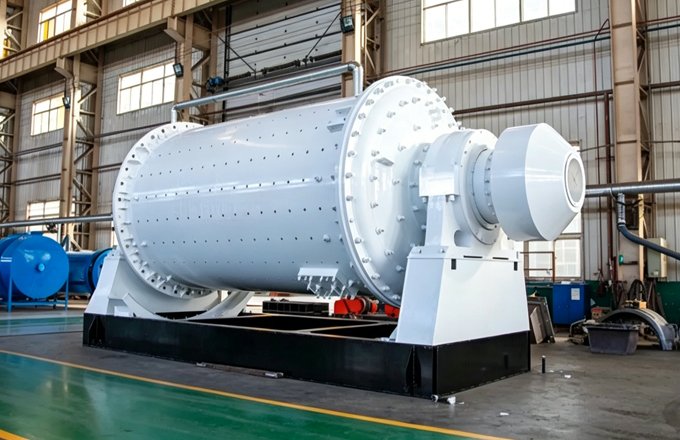

Mills are divided into ball mills and rod mills. The grinding media in a ball mill are steel balls, while the grinding media in a rod mill are steel rods.
You need to understand the basic parts of the machine. The main body is the steel shell. We line the inside of this shell with thick metal plates. These plates protect the shell from damage. A massive electric motor drives a large gear. This gear wraps around the cylinder and makes it turn. In addition, you also have large bearings at both ends to hold the massive weight.
| Machine Part | What It Is | What It Does | Why It Matters to You |
|---|---|---|---|
| Steel Shell | The main cylinder | Holds rocks and balls | A thicker shell lasts decades. |
| Mill Liners | Internal plates | Protects the steel shell | Good liners stop costly machine leaks. |
| Main Gear | The driving wheel | Turns the heavy cylinder | Proper gears keep rotation smooth. |
Real Example: A small gold plant in Africa ignored strange gear noises. The main gear cracked totally. We had to rush order a new gear. They lost five days of production. You must always listen to your machine.
The machine uses heavy falling steel balls to smash rocks and rolling balls to rub the rocks into dust. You rely on gravity to do the hardest crushing work inside the grinding mill.
Imagine a clothes washing machine spinning very fast. We put rocks and heavy iron balls inside this spinning drum. The motor turns the drum and lifts the steel balls high into the air. Gravity pulls the heavy balls down. They crash into the rocks sitting at the bottom. This massive impact shatters the solid rocks instantly. Then, the whole mass rolls together. The heavy steel balls rub against the smaller rock pieces.
This rubbing action acts like sandpaper. It grinds the small pieces into a fine powder. Our 15 senior engineers calculate the perfect rotation speed for your machine. If the cylinder spins too slowly, the balls just slide and do nothing. If it spins too fast, the balls stick to the walls and do not fall. We set the exact speed you need to crush rocks perfectly.
You use a wet ball mill for metal ores and a dry ball mill for cement and construction materials. You must choose the right water system to make your plant successful.
A wet ball mill mixes rocks with water inside the cylinder. This creates a thick liquid mud called a slurry. You want wet grinding for gold, copper, and iron ores. Wet grinding uses less electricity. It also stops dangerous rock dust from flying into the air.

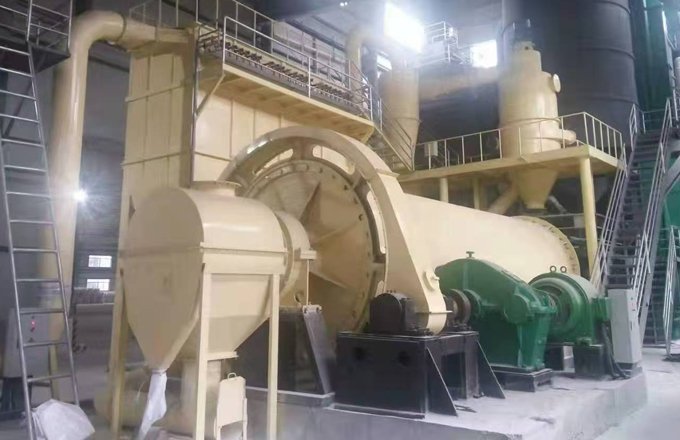

A dry ball mill uses only air to move the powder. You need dry grinding for cement or chemicals that react badly with water. We are a direct ball mill manufacturer.
We help you decide which system works best for your factory. We supply the water pumps for wet systems. We also supply the large air fans and dust catchers for dry systems. You get a complete package. We save you the trouble of buying different parts from different companies.
You can process gold ore, iron ore, copper ore, quartz stone, limestone, and recycled building waste. Our machines can handle almost any hard or soft natural mineral.
Hard rocks like quartz require large steel balls and massive electric motors. Soft rocks like limestone grind very fast and need less power. You must tell us exactly what kind of rock you want to process. We customizes the internal design based on your specific rock type. We choose different steel alloys for the internal armor plates based on your rock hardness. We have tested hundreds of different materials since our factory opened in 2008. You will get an equipment layout designed exactly for your site. We also adjust the feeding hole size. Big rocks need a bigger feeding hole. We make sure your rocks flow into the machine without getting stuck.
First, use a jaw crusher to break large stones into smaller ones, then use a cone crusher to further crush the smaller stones into suitable particle sizes. This protects the lifespan of equipment in subsequent stages, thus saving significant costs.
Feed the appropriately sized stones into a ball mill for grinding, using precisely proportioned steel balls. This easily grinds these fine stones into powder. Shorter motor operation time reduces electricity bills and energy consumption. After all, the ball mill is one of the most power-consuming pieces of equipment in a factory. Therefore, we always advise customers to “crush more, grind less.”
We equip our grinding mills with modern, energy-efficient motors. In addition, the machine requires a specific ratio of large, medium, and small steel balls. Large steel balls crush large stones, while small steel balls grind smaller stones into fine powder. Our engineers will provide you with a scientifically formulated steel ball mixture to ensure the steel balls do not idle and collide. This way, you can produce more powder with every kilowatt-hour of electricity.
You choose the machine size based on how many tons of rock you want to process every hour. You must look carefully at the ball mill specifications before buying.
Do not buy a giant machine for a small quarry. Do not buy a tiny machine for a massive mining group. You need to calculate your target daily production first. A small gold mine might only need to grind 2 tons per hour. A massive copper group needs to grind 100 tons per hour.We produces over 500 machines every year in many different diameters and lengths. We look at your target capacity and your rock hardness. Then we calculate the exact volume and motor power you actually need. You save money because you only buy the steel and power you will truly use.
The ball mill price ranges from $10,000 for small models to over $500,000 for massive industrial units. The final price depends on the steel weight and motor size.
A machine with a 3-meter diameter needs heavy, expensive steel plates and a massive electrical transformer. This raises the cost significantly. A small 1-meter diameter machine uses much less steel and a common motor. We sell equipment as a direct manufacturing factory. We cuts out trading companies and middlemen. You buy directly from our welding floor in China. This direct sales model gives you a much better price than local dealers. We offer both standard standard machines and highly customized units. Custom machine designs cost a little more. But a custom machine fits perfectly into your existing factory building. We always give you a clear, itemized price list. You know exactly what motor, steel, and services you pay for.
To see how crushing equipment prices compare, read our page on [Limestone Crusher Plant Costs].
Choosing thick manganese steel liners and conducting monthly internal machine inspections can extend the liner’s lifespan. The inner liner withstands all damage, thus protecting the main cylinder.
CHUNLEI’s specially made manganese steel or thick rubber liners prevent sharp, hard rocks from damaging inexpensive metal liners within weeks. Because manganese steel hardens under impact from heavy balls, you must periodically turn off the power and open the machine door.
If the liner wears too thin, a steel ball can penetrate the main body, causing complete machine damage. We’ve designed large, easy-to-open safety doors on the cylinders. Your workers can quickly enter, replace damaged liners, and leave promptly. Maintenance is quick and easy.

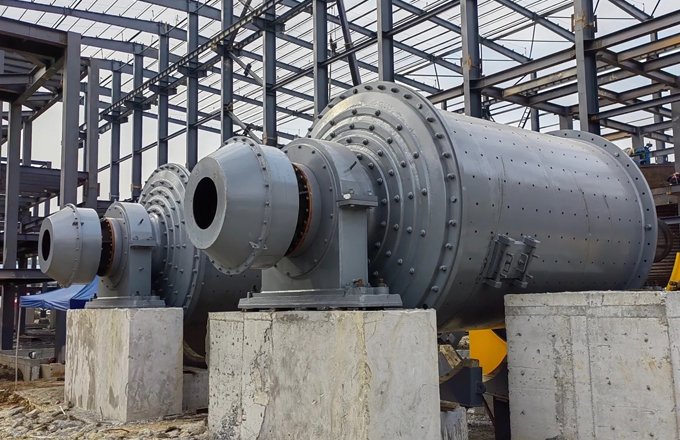

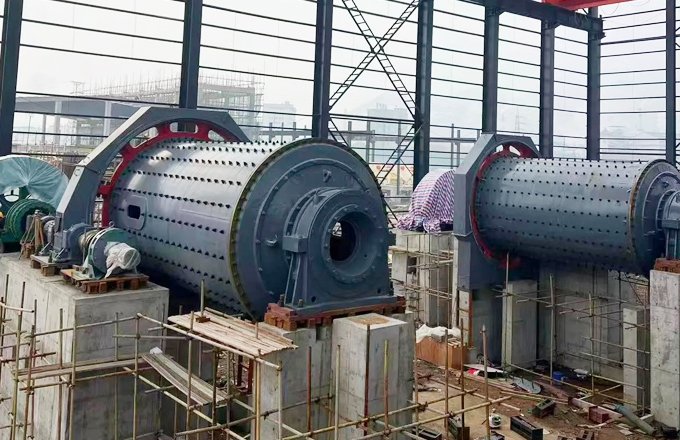

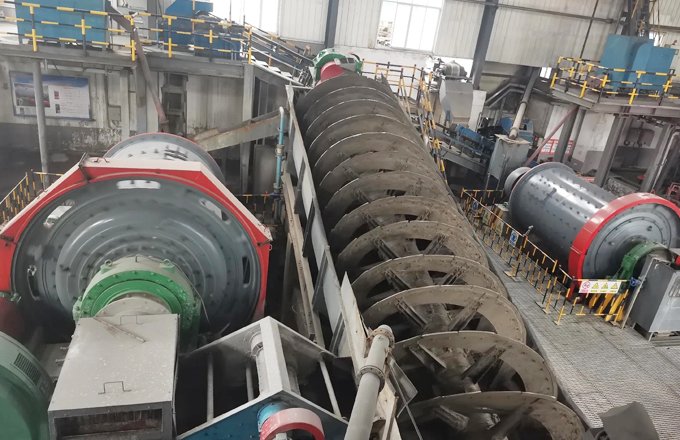

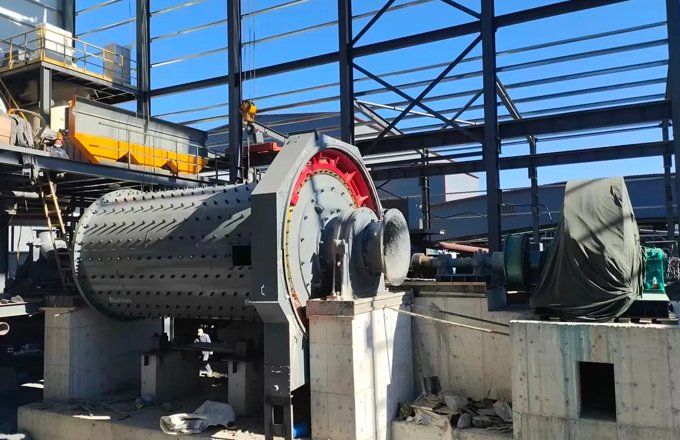

We successfully installed a gold ore processing plant in Zimbabwe in 2023. Our client faced severe challenges with very hard quartz rocks.
The Client Challenge: The client had very hard rocks that broke their old small crushing equipment constantly. Their old grinding machine gave them very coarse sand instead of fine powder. This coarse sand ruined their chemical separation process.
Solution: We redesigned their whole layout. We added a cone crusher to reduce the rock size to under 20 millimeters before grinding. We installed our heavy-duty wet cylinder. We adjusted the steel ball ratio specifically for their hard quartz. The client now gets very fine powder (80% passing 200 mesh). Their gold recovery jumped to 93%. They run the plant 24 hours a day with very few maintenance stops.
| Modelo | Velocidad del cilindro（r/min） | Carga de bolas(t) | Granularidad de alimentación(mm) | Granularidad de descarga(mm) | Capacidad(t/h) | Potencia del motor(kw) | Peso total(t) |
| Ф900×1800 | 36-38 | 1.5 | ≤20 | 0.075-0.89 | 0.65-2 | 18.5 | 5.85 |

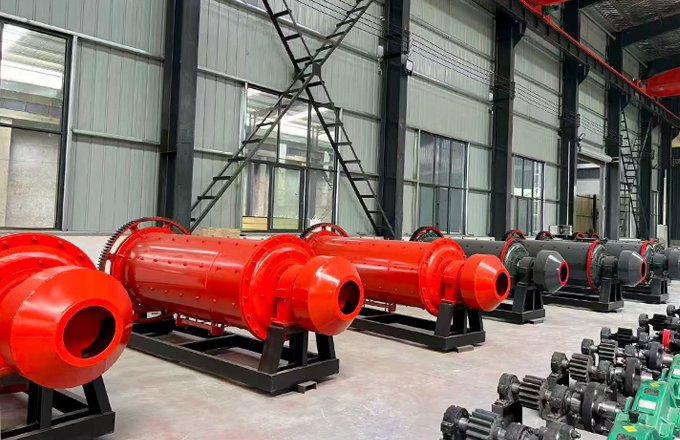

| Ф900×3000 | 36 | 2.7 | ≤20 | 0.075-0.89 | 1.1-3.5 | 22 | 6.98 |
| Ф1200×2400 | 36 | 3 | ≤25 | 0.075-0.6 | 1.5-4.8 | 30 | 13.6 |
| Ф1200×3000 | 36 | 3.5 | ≤25 | 0.074-0.4 | 1.6-5 | 37 | 14.3 |
| Ф1200×4500 | 32.4 | 5 | ≤25 | 0.074-0.4 | 1.6-5.8 | 55 | 15.6 |

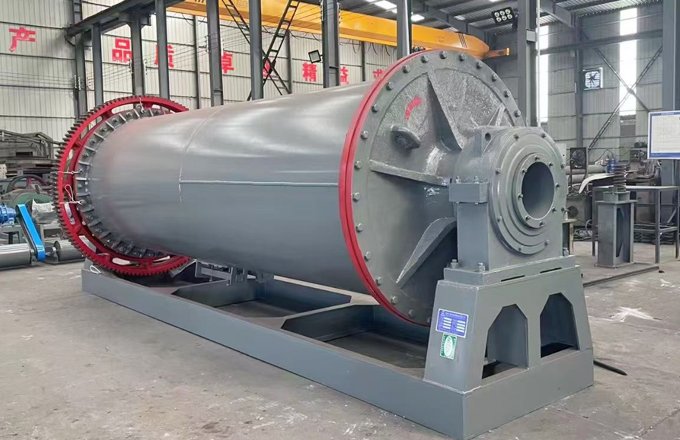

| Ф1500×3000 | 29.7 | 7.5 | ≤25 | 0.074-0.4 | 2-5 | 75 | 19.5 |
| Ф1500×4500 | 27 | 11 | ≤25 | 0.074-0.4 | 3-6 | 110 | 22 |
| Ф1500×5700 | 28 | 12 | ≤25 | 0.074-0.4 | 3.5-6 | 130 | 25.8 |
| Ф1830×3000 | 25.4 | 11 | ≤25 | 0.074-0.4 | 4-10 | 130 | 34.5 |
| Ф1830×4500 | 25.4 | 15 | ≤25 | 0.074-0.4 | 4.5-12 | 155 | 38 |
| Ф1830×6400 | 24.1 | 21 | ≤25 | 0.074-0.4 | 6.5-15 | 210 | 43 |
| Ф1830×7000 | 24.1 | 23 | ≤25 | 0.074-0.4 | 7.5-17 | 245 | 43.8 |
| Ф2100×3000 | 23.7 | 15 | ≤25 | 0.074-0.4 | 6.5-36 | 155 | 45 |
| Ф2100×4500 | 23.7 | 24 | <25 | 0.074-0.4 | 8-43 | 245 | 56 |
| Ф2100×7000 | 23.7 | 26 | <25 | 0.074-0.4 | 12-48 | 280 | 59.5 |
| Ф2200×4500 | 21.5 | 27 | <25 | 0.074-0.4 | 9-45 | 280 | 54.5 |
| Ф2200×6500 | 21.7 | 35 | <25 | 0.074-0.4 | 14-26 | 380 | 61 |
| Ф2200×7000 | 21.7 | 35 | <25 | 0.074-0.4 | 15-28 | 380 | 62.5 |
| Ф2200×7500 | 21.7 | 35 | <25 | 0.074-0.4 | 15-30 | 380 | 64.8 |
| Ф2400×3000 | 21 | 23 | <25 | 0.074-0.4 | 7-50 | 245 | 58 |
| Ф2400×4500 | 21 | 30 | <25 | 0.074-0.4 | 8.5-60 | 320 | 72 |
| Ф2700×4000 | 20.7 | 40 | <25 | 0.074-0.4 | 22-80 | 380 | 95 |

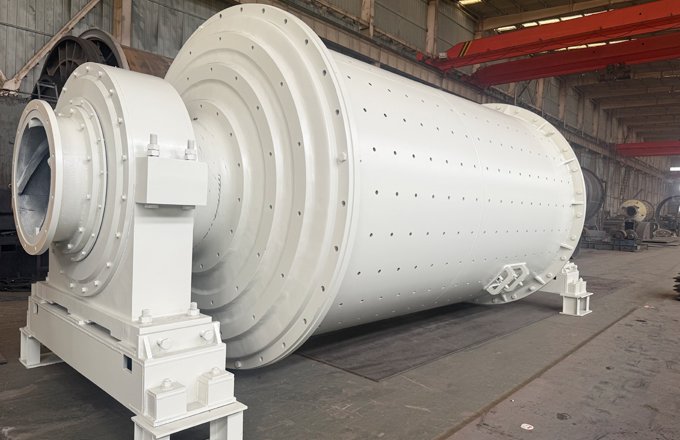

| Ф2700×4500 | 20.7 | 48 | <25 | 0.074-0.4 | 26-90 | 480 | 102 |
| Ф3200×4500 | 18 | 65 | <25 | 0.074-0.4 | According to process conditions | 630 | 149 |
| Ф3600×4500 | 17 | 90 | <25 | 0.074-0.4 | According to process conditions | 850 | 169 |
| Ф3600×6000 | 17 | 110 | <25 | 0.074-0.4 | According to process conditions | 1250 | 198 |
You need a partner, not just a steel box seller. A bad supplier leaves you with a broken machine and zero help. You must evaluate the factory behind the machine carefully.
We meets all these rules. We have exported heavy equipment to over 120 countries. We pack machines securely and send our best engineers to your site.
We are a professional direct manufacturer of mineral processing machines. We started our factory in 2008. We now have an 8000-square-meter modern production floor. We build over 500 heavy machines every year. We employ 15 senior engineers who strictly control our welding and steel quality.
Our biggest advantage is our complete one-stop service. We do not just sell a steel cylinder. We design your whole plant layout. We build jaw crushers, magnetic separators, and rotary dryers. You get all your equipment from one trusted source. We export to over 120 countries and provide lifelong spare parts support.
Contact our technical sales team today. Ask us for a free customized grinding solution plan and direct factory price list.
Modern grinding machines in 2026 use smart sensors and variable speed motors to save power automatically. The mining industry pushes hard for machines that think for themselves and use less electricity.
Large mining companies now demand complete data tracking. They want to see the motor temperature and power use on their mobile cellphones. We integrate these smart control boxes into CHUNLEI equipment upon request. You get a modern factory that runs efficiently. You stop guessing and start running your plant based on real numbers.
Question 1: How many steel balls do I need to buy for a new machine?
You must fill about 40% of the cylinder volume with steel balls. We calculate the exact total weight for you. We provide the first full load of steel balls with every new machine delivery.
Question 2: How often do I need to add new steel balls?
You need to add a few new balls every week. The balls slowly wear down and become smaller as they grind rocks. You must keep the total weight of balls constant to keep your powder fine.
Question 3: Can I process wet and dry materials in the same machine?
No. You cannot mix the two methods. A dry system needs special air valves. A wet system needs waterproof seals. You must choose one system based on your final production goal.
Question 4: Does CHUNLEI install the machine in my country?
Yes. We send professional installation engineers to your mining site. Our engineer directs your local cranes and welders. We stay until your machine produces perfect powder.
You pick the right machine by knowing your rock type, required tons per hour, and target powder size. A high-quality ball mill protects your investment with thick steel and reliable motors. You cut costs by crushing rocks smaller first and maintaining the inside metal plates carefully. You must buy directly from an experienced factory to get real value.
You need to take action to improve your plant capacity today. Gather your rock samples and write down your daily production goals. Contact our engineering team. We will give you a free, detailed capacity calculation and equipment list.
