How to Choose a Ball Mill for Quartz Sand Grinding?

Quartz ranks among the most abundant minerals on Earth. Its ground form finds extensive applications, making it a widely developed mineral across various industries. However, its high hardness and exceptional wear resistance present significant challenges during grinding. While a ball mill is undoubtedly the optimal choice for quartz sand grinding, the question remains: should one opt for a steel ball mill or a ceramic ball mill? This article by CHUNLEI will focus on explaining the differences between the two, helping you select the most suitable ball mill equipment.

The core decision between steel ball mills and ceramic ball mills for quartz sand grinding lies in “product purity” and “overall cost.” Simply put: – If your product requires high purity and zero iron contamination, a ceramic ball mill with high-alumina lining and ceramic grinding media is essential. – If iron content is not a strict requirement, a steel ball mill is recommended for its higher output and lower cost. To illustrate the differences more clearly, CHUNLEI has prepared a comparison table:

Selecting a quartz sand ball mill is not merely purchasing equipment—it is an investment in the quality of your final product. As a professional ball mill manufacturer, CHUNLEI understands that the true challenge in grinding quartz is not its hardness, but rather the strict requirements for iron contamination in the final product. This guide explains the key selection factors that protect product value and safeguard your bottom line.

Steel Ball Mill Solutions

Steel ball mill media include forged steel balls and cast steel balls, among others. For specifics, refer to What Balls To Use In A Ball Mill?Steel ball mills are the preferred choice for high efficiency and low cost. They rely on the immense impact force generated when high-density steel balls are dropped from a height to crush and grind quartz sand, achieving exceptional efficiency. However, the impact between steel balls and material inevitably generates iron filings that contaminate the product. This causes quartz sand to appear grayish or yellowish, reducing its whiteness.

If your quartz sand is used in applications insensitive to trace iron impurities—such as ordinary glass, building materials, artificial stone, or coated foundry sand—then steel ball mills offer the best cost-performance ratio.

Ceramic Ball Mill Solutions

Opting for a ceramic ball mill means choosing an iron-free grinding solution. At this stage, there are two lining options:

• High-Alumina Ceramic Liners: These bricks are manufactured from high-purity alumina at elevated temperatures. They offer exceptional wear resistance and corrosion resistance without introducing any iron contamination, making them the gold standard for grinding high-purity products.
• Rubber Lining Plates: These offer not only wear resistance but are also lighter than manganese steel liners, providing better protection for the grinding vessel and reducing energy consumption. Their inherent cushioning effect also minimizes over-grinding. For quartz particles embedded in the surface, they promote more quartz-on-quartz grinding. While preventing iron contamination, they may not be suitable for the finest grinding equipment.

Differences Between Dry and Wet Grinding of Quartz

Dry grinding and Wet grinding of quartz are entirely distinct processes. Choosing the wrong method will impact product quality, investment costs, and may lead to severe dust issues and unnecessary dewatering expenses.
Simply put, dry grinding involves grinding quartz directly in a water-free state, offering high efficiency and low cost. Wet grinding, conducted in water or liquid media, yields superior quality and higher purity but produces slurry requiring dewatering.

Comparison of Dry Grinding and Wet Grinding of Quartz

How to achieve 200 mesh (approximately 75 microns) for quartz sand?

Precise classification is an essential step to meet the 200 mesh standard for quartz sand. Simply extending ball mill grinding time will result in some particles being ground into ultrafine slurry while others remain coarse, leading to significant energy waste.

Role of the Classifier：

• Preventing Over-Grinding: Classifiers or hydrocyclones serve as critical screening mechanisms. They separate the slurry, returning coarse particles to the ball mill while directing fine slurry to subsequent stages. This prevents certain particles from being continuously ground in the mill, avoiding over-grinding.
• Enhancing Efficiency: By classifying particles, only coarse particles are returned to the ball mill for re-grinding, forming a closed-circuit system. This maximizes ball mill utilization and reduces operational costs.

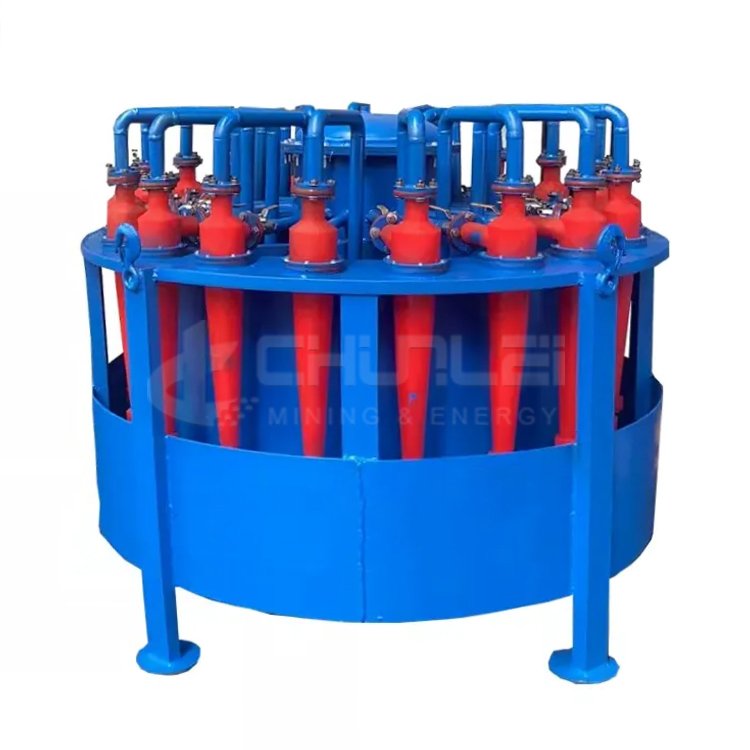

• Size Control: For wet grinding of quartz sand, spiral classifiers simultaneously perform preliminary classification and automatically return coarse sand to the mill, eliminating the need for additional conveying equipment. Hydraulic cyclones, meanwhile, can classify finer products (up to 200 mesh), making them suitable for projects demanding extremely high product fineness.

How should you choose the grinding process?

Your selection depends on the product’s end use and market positioning:

Choose the dry grinding solution:

1. Your product is used in sectors like building materials and foundry where iron content requirements are low.
2. Your region faces water scarcity.
3. You seek a simpler process flow and lower initial investment.

Select wet grinding:

1. Your product targets high-value markets demanding ppm-level purity (parts per million).
2. You require strict control over product purity, whiteness, and consistency.
3. You have the capability to handle subsequent dewatering processes and wastewater treatment.

For a deeper understanding of the process, share your raw materials, final product specifications, and production capacity requirements with CHUNLEI. We will tailor a grinding solution specifically for you. Get your free solution now!
