Sand Making Machine

A variety of models are available | Get the free price list!

Sand making machine is also called impact crusher, compared with the traditional sand making machine has a deep cavity impeller, throughput increased by 33%, peripheral guard plate up and down can be turned around, long service life, the combination of throwing head, reduce the cost of 35%, the center and peripheral feed, flexible adjustment, easy to convert and other advantages.
Feed size:＜55 mm
Capacity:80-650t/h
Applicable materials: river pebbles, granite, basalt, iron ore, limestone, calcite, quartzite, pyroxene, weathered rock, calcite, coal, manganese ore and so on.

What is Sand Making Machine?

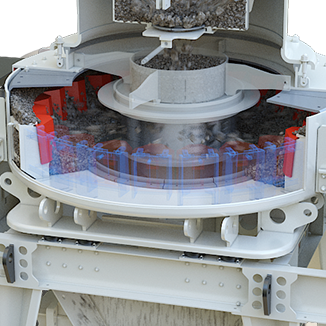

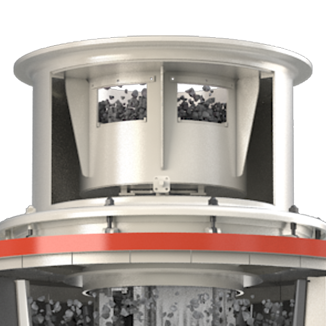

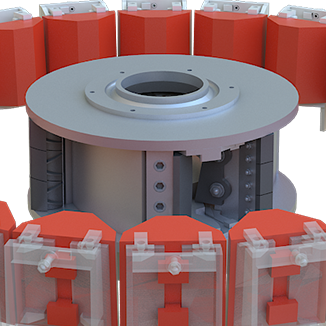

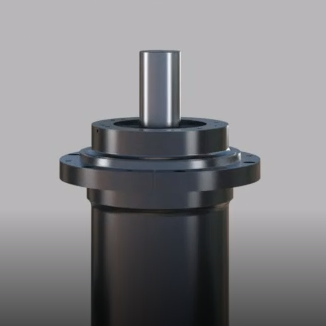

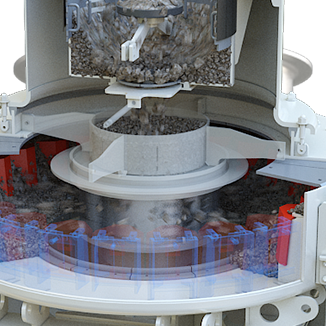

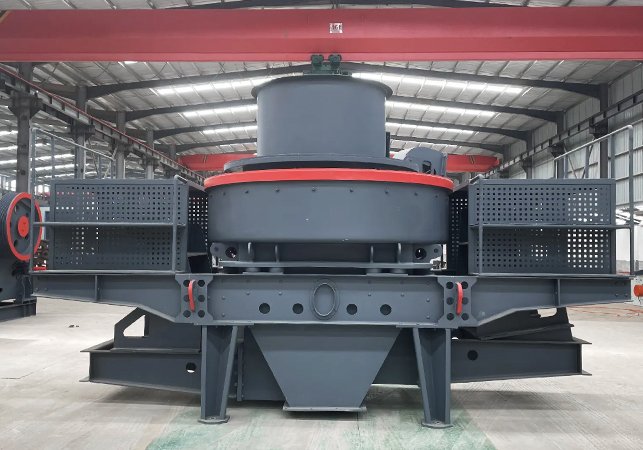

Sand making machine is also known as impact sand making machine, impact crusher, vertical impact crusher, or impact breaker for short. It consists of seven parts, including feeding, distributor, vortex crushing chamber, impeller experience, main shaft assembly, base transmission device and motor.

VSI series impact sand making machine is a sand making equipment with advanced level developed by our company on the basis of introducing advanced technology from Germany and combining with the actual situation of domestic sand making production after several technical improvements. Its performance plays an irreplaceable role in all kinds of ore fine crushing equipment, and it is the most effective, practical and reliable stone crushing machine.

What Is Sand Making Machine Used For?

Impact sand making machine integrates many kinds of crushing modes and becomes a core equipment in sand making industry. It can be widely used in crushing and shaping of metal ores and non-metallic ores, building materials, artificial sand making and various metallurgical slag.
Impact sand making machine is especially suitable for providing sand and gravel aggregate for high-rise buildings, highway (railroad) construction, municipal engineering, large-scale water conservancy facilities, concrete mixing plant and many other fields.

Sand making machine is widely used in the artificial sand making of metal and non-metallic ores, cement, refractory materials, abrasive materials, glass raw materials, construction aggregates, artificial sand making, river cobbles, mountain rocks (limestone, granite, basalt, gabbro, andesite, etc.), ore tailings, stone chips, construction aggregates, highway surfacing materials, bedding materials, asphalt concrete and cement concrete aggregates production as well as various metallurgical slag of the fine crushing and coarse grinding operations It is more superior than other types of crushers, especially for medium-hard, extra-hard and abrasive materials such as silicon carbide, adamantine, sintered alumina-vanadium earth, magnesia, and so on. Used together with hydraulic jaw crusher, it can process various metallurgical slag. It is suitable for building sand and road construction sand and gravel.

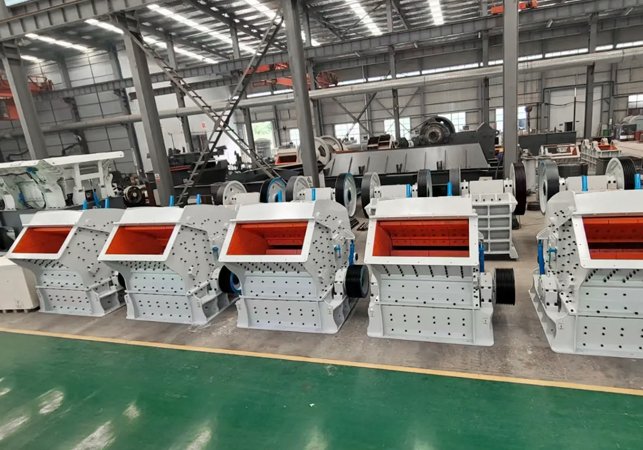

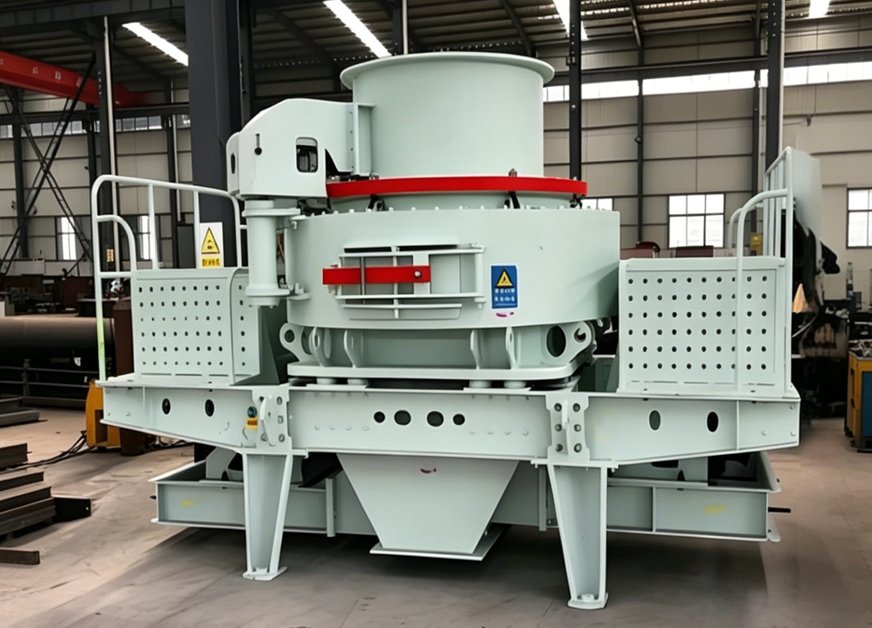

Sand Making Machine ordered by Customer

Chunlei Machinery has been engaged in mining machinery manufacturing for more than 30 years, with a wealth of experience in building websites and customer cases, served customers all over the world!

Technical Parameters of Sand Making Machine

Model		VSI 7611	VSI 8518	VSI 9526	VSI 1140	VSI 1145	VSI 1150
Capacity (t/h)	Cascade & Center Feed	80-180	140-260	200-380	300-520	350-610	360-650
	Full Center Feed	40-90	70-130	100-190	160-260	180-355	190-365
Maximum feed size （mm）	Soft material	35	40	45	50	50	50
	Hard material	30	35	40	40	45	45
Rotation speed（r/min）		1700-1890	1520-1690	1360-1510	1150-1300	1150-1300	1150-1300
Motor power（kw）		4P 110	4P 180	4P 264	4P 400	4P 440	4P 500
Length×Width×Height（mm）		4100×2250×2300	4160×2360×2500	4540×2500×2830	5500×2750×3100	5500×2750×3100	5500×2750×3100

Note: The output will vary depending on different materials, feed particle size and other factors.

Working Principle of Sand Making Machine

Material from the vibrating feeder into the VSI sand making machine hopper, through the separator will be divided into two parts, part of the middle of the separator into the high-speed rotation of the impeller, the impeller is rapidly accelerated, and then together with the impact to the vortex branch cavity on the material lining layer, by the material lining layer rebound, diagonally upward impact to the top of the vortex cavity, and change its direction of movement, deflection downward movement, from the impeller channel launching out of the material The material launched from the impeller channel forms a continuous material curtain. In this way, a piece of material in the vortex crushing cavity by two to many times the rate of impact, friction and grinding crushing action.

Advantageous features of Sand Making Machine

Low cost investment: reliable operation, easy to operate, high efficiency and energy saving, can be based on different process requirements, the combination of various types of equipment, sand cost investment.
Good granularity of crushed products: high crushing efficiency and low energy consumption. Its crushed products have uniform particle size, natural grain shape, solid and stable materials, so it is often used in construction and engineering fields with strict requirements for sand and gravel materials.
Easy to operate and overhaul: easy to operate and use, equipped with hydraulic cover opening device, which makes the overhaul and replacement of internal parts of the crushing chamber convenient and quick, saving time and labor.
Excellent technology, energy-saving and environmental protection: the application of riveting technology and the application of sand blasting and rust removing treatment and paint spraying technology of automobile technology improve the inner quality and appearance of the equipment.

Sand Making Machine FAQ

Q: What is a sand making machine used for?
A: It crushes rocks, pebbles, and mine waste into artificial sand for construction, concrete, and asphalt. It replaces natural river sand.

2. Q: Can a sand making machine handle wet materials?
A: Yes. Most models can process materials with up to 8-12% moisture. For very wet feed, choose a machine with a heating or anti-sticking design.

3. Q: What is the output size of sand from a sand making machine?

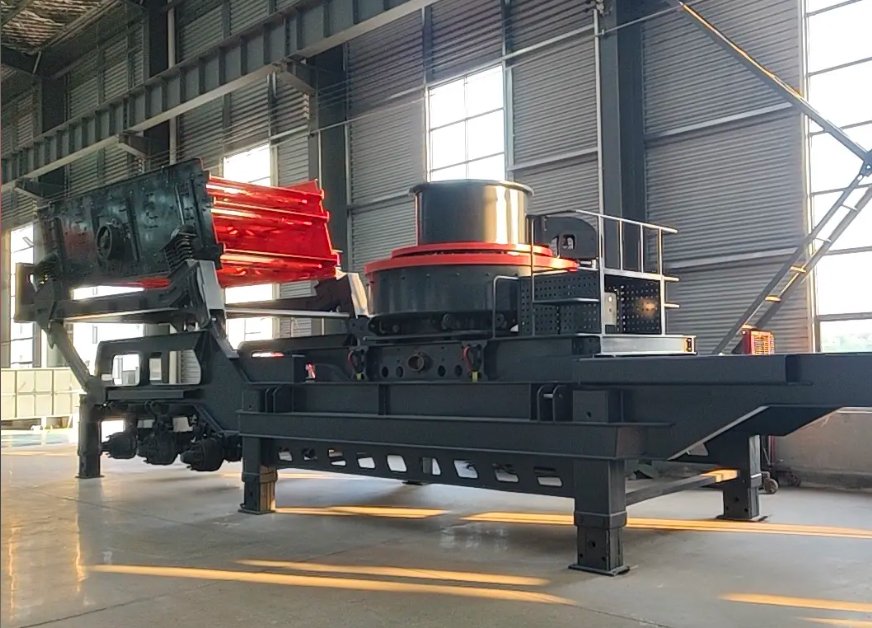

A: You can adjust it from 0-5mm (fine sand) up to 0-10mm (coarse sand). A built-in vibrating screen or a separate screening system can separate different sizes.

4. Q: How much does a sand making machine cost?
A: Prices range from $15,000 to $150,000 USD depending on capacity (30-500 t/h), motor power, and automation level. Contact us for a quote based on your exact rock type and desired output.

5. Q: How long do wear parts last on a sand making machine?
A: It depends on the rock hardness. For medium-hard limestone, wear parts can last 200-400 hours. For very hard granite or basalt, expect 80-150 hours. Using tungsten carbide tips can extend life by 2-3 times.
